The R6RS module system

Part I

The easy things about the R6RS module system

Part II

Explicit phasing and the tower of meta-levels

Part III

Porting libraries between different R6RS implementations

Self-presentation

Who am I?

About me

A hobbyist Scheme programmer

• I use Python at work
• I started programming in Scheme 5+ years ago
• I am writing "The Adventures of a Pythonista in Schemeland" on Artima.com
• the blog posts will become a book
• I think my experience is relevant for new R6RS programmers

What I have done in Scheme

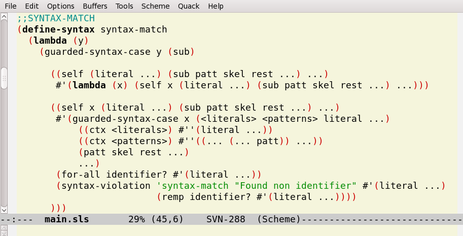

• written a module called sweet-macros as sugar over syntax-case

• written various support libraries for the Adventures
• fought a lot with portability issues
• experimented with cutting edge features (found bugs!)
• made a lot of noise in various mailing lists
• got impressive support from Scheme implementors :-)

Part I: the easy part

$ cat my-lib.sls # in most R6RS implementations
#!r6rs
(library (my-lib)
 (export a b)
 (import (rnrs)); standard R6RS bindings
 (define a 42)
 (define b 0)
 (display "my-lib instantiated!\n")
)
;; import it as (import (my-lib))
;; be careful with the names!

Nothing is easy

how to map libraries to the file system is unspecified!

• (import (package subpackage ... lib)) looks for package/subpackage .../lib.sls
• in PLT (import (my-lib)) looks for my-lib/main.sls, not for my-lib.sls
• some implementations understand the main.sls convention, others not
• there is not even an SRFI on the topic (yet)
• open issues: multiple libraries in a single file and how to manage multiple versions of a library

Import syntax

(import (rnrs) (my-lib))
(display (+ a b)) ;=> 42

• import with a prefix:

  (import (rnrs) (prefix (my-lib) my-lib:))
  (display my-lib:a) ;=> 42


• import only a specific sets of names:

  (import (rnrs) (only (my-lib) a))
  (display a) ;=> 42


Import syntax (rename, except)

other easy features

• renaming a set of identifiers:

  (import (rnrs) (rename (my-lib) (a ml-a)))
  (display ml-a) ;=> 42


• excluding a set of identifiers:

  (import (rnrs) (except (my-lib) a))
  (display b) ;=> 0


Limitations

• (export *) not available
  • you must list explicitly all the exported identifiers
  • the rationale is making static recognition of exported identifiers easier

• no introspection API
  • no (get-exported-ids '(my-lib))
  • no (get-path-name '(my-lib))
• support for implementation-specific files (.IMPL.sls convention) in its infancy

Example: compatibility files

$ cat compat.mzscheme.sls
#!r6rs
(library (aps compat)
(export printf format pretty-print)
(import (rnrs) (only (scheme) printf format pretty-print)))

$ cat compat.ypsilon.sls
(library (aps compat)
(export printf format pretty-print)
(import (rnrs) (core))
(define (printf format-string . args)
  (display (apply format format-string args))))

Let's start with macros now

They are not so scary ...

R6RS modules and syntax-rules

A simple example:

#!r6rs
(library (show)
 (export show)
 (import (rnrs) (only (aps compat) printf))
 (define-syntax show
   (syntax-rules ()
    ((_ x) (printf "~a=~a\n" 'x x)))))

Macro usage

99.9% of times there are no problems with syntax-rules macros:

> (import (show))
> (define a 1)
> (show a)
a=1

I will show an issue with a second order syntax-rules macro later on

Where is the problem?

• the most common problem is when you have macro transformers depending on helper variables:

> (let ()
    (define a 42)
    (define-syntax m (lambda (x) a))
    m)
error: identifier a out of context

• the identifier is not available to the macro!?

Because of phase separation

(let ()
 (define a 42)                    ; run-time
 (define-syntax m (lambda (x) a)) ; macro-def-time
 m)

• a is defined too late!
• regular definitions (both define and let) are performed at run-time
• macro definitions (both define-syntax and let-syntax) are performed at compile-time

Phase errors

One must be careful not to mix expand-time and run-time

Beware of the REPL!

$ mzscheme # or larceny
> (define a 42)
> (let-syntax ((m (lambda (x) a))) m)
reference to undefined identifier: a

but

$ ikarus # or ypsilon
> (define a 42)
> (let-syntax ((m (lambda (x) a))) m)
  42

No phase separation

Phase separation is not ubiquitous; for instance Guile 1.8 (or Emacs Lisp) have no phase separation:

guile> (let ()
         (define a 42)
         (define-macro (m) a)
         (m))
42

(the next version of Guile will have phase separation and some support for R6RS Scheme).

To cope with phase separation

Put the helper object (value, function, macro) in a different module and import it at expand time

> (import (for (my-lib) expand))
> (let-syntax ((m (lambda (x) a))) m)
  42

• slightly inconvenient
• I wish we could include libraries in scripts :-(

So everthing is settled, right?

Not really, since there are a few R6RS surprises ...

The R6RS specification is loose

An example:

(import (for (only (my-lib) a) expand))
(display (let-syntax ((m (lambda (x) a))) m))
(display a)

• R6RS implementations are required to support (import (for (my-lib) expand)) syntactically
• they are not required to honor it!
• this code runs fine on all systems except PLT Scheme and Larceny!

Lack of phase specification

• systems based on psyntax (and Ypsilon) import the identifiers at all phases simultaneously

• you cannot import a name into a specific phase
• I will argue this a good thing because it avoids the tower of meta-levels (later)
• the R6RS forbids reusing the same name with different bindings in different phases anyway

Part II

Fasten your seatbelts now ...

The Dark Tower of meta-levels

Meta-levels in macros

we saw that the right hand side of macro definition refers to names which are one phase (meta-level) up

• (define-syntax macro                ; meta-level 0
     (lambda (x)                      ; meta-level 1
       (syntax-case x (literals ...)  ; meta-level 1
         (pattern                     ; meta-level 1
          fender                      ; meta-level 1
          #'template))))              ; meta-level 0


• inside a template one goes back one meta-level

An example at meta-level 2

(import (for (only (my-lib) a) (meta 2))
        (for (only (my-lib) b) (meta 1)))
(define-syntax m1       ;; level 0
 (lambda (x1)           ;; level 1
    (define-syntax m2   ;; level 1
       (lambda (x2) a)) ;; level 2
    (+ m2 b)))          ;; level 1
(display                ;; level 0
  m1                    ;; level 1
)                       ;; level 0

Positive meta-levels

• in a nested macro innermost levels are compiled first

The Dark Side of the Tower

(define-syntax very-static-table
 (syntax-rules ()
   ((_ (name value) ...)
     (syntax-rules (<names> name ...)
       ((_ <names>) '(name ...))
       ((_ name) value) ...))))

(define-syntax color
 (very-static-table (red 0) (green 1) (blue 2)))

(display (color <names>)) ;=> (red green blue)
(display (color red)) ;=> 0

Negative meta-levels

(define-syntax very-static-table      ;; level 0
 (syntax-rules ()                     ;; level 1
   ((_ (name value) ...)              ;; level 1
     (syntax-rules (<names> name ...) ;; level 0
       ((_ <names>)                   ;; level 0
         '(name ...))                 ;; level -1
       ((_ name)                      ;; level 0
         value)                       ;; level -1
         ...))))

Needs (import (for (only (rnrs) quote) (meta -1)))

I had to fight with meta-levels

(import (rnrs) (for (rnrs) (meta -1))
(for (sweet-macros helper1) (meta -1) (meta 0) (meta 1)))

Ikarus, Mosh, IronScheme ...

Such implementations do not need to worry about the Dark Tower. I think they will have a great future!

R6RS: an unhappy compromise

You get the worse of two worlds: writers of portable code

• cannot rely on the simplicity of implicit phasing
• cannot rely on the full power of explicit phasing
• cannot rely on a clearly defined import semantics
• apparently it was politically impossible to do better :-/

Part III: my experience

Porting macro-rich R6RS libraries can be a rather heavy task ...

Bugs

I have found many bugs in different R6RS implementations while porting my sweet-macros library:

• Ikarus (1)
• Ypsilon (4)
• PLT (3)
• Larceny (1)

All fixed within hours!

Other difficulties

• I had to wait for the .IMPL.sls convention to be implemented
• I am generating the helper modules required by PLT/Larceny from the Ikarus/Ypsilon module

• while writing the APS libraries I have found various non-portable behaviors
• the number of times a library is instantiated is totally implementation-dependent

More non-portable behavior

• the number of times a library is visited is also implementation-dependent
• in implementations based on psyntax and in Ypsilon a module is visited only if one of its macros is used
• in implementations others than PLT, side-effects can leak through phases

• all the details in my Adventures

References

• http://www.artima.com
• http://www.phyast.pitt.edu/~micheles/scheme/TheAdventuresofaPythonistainSchemeland.pdf
• http://www.phyast.pitt.edu/~micheles/scheme/sweet-macros.zip

and of course in the R6RS document

• http://www.r6rs.org/final/html/r6rs/r6rs.html

Acknowledgments

This work would not have been possible without the help of

• Abdulaziz Ghuloum, Derick Eddington (Ikarus)
• Matthew Flatt, Eli Barzilay (PLT)
• Will Clinger, André van Tolder (Larceny)
• Yoshikatsu Fujita (Ypsilon)

and many others. Thank you!
